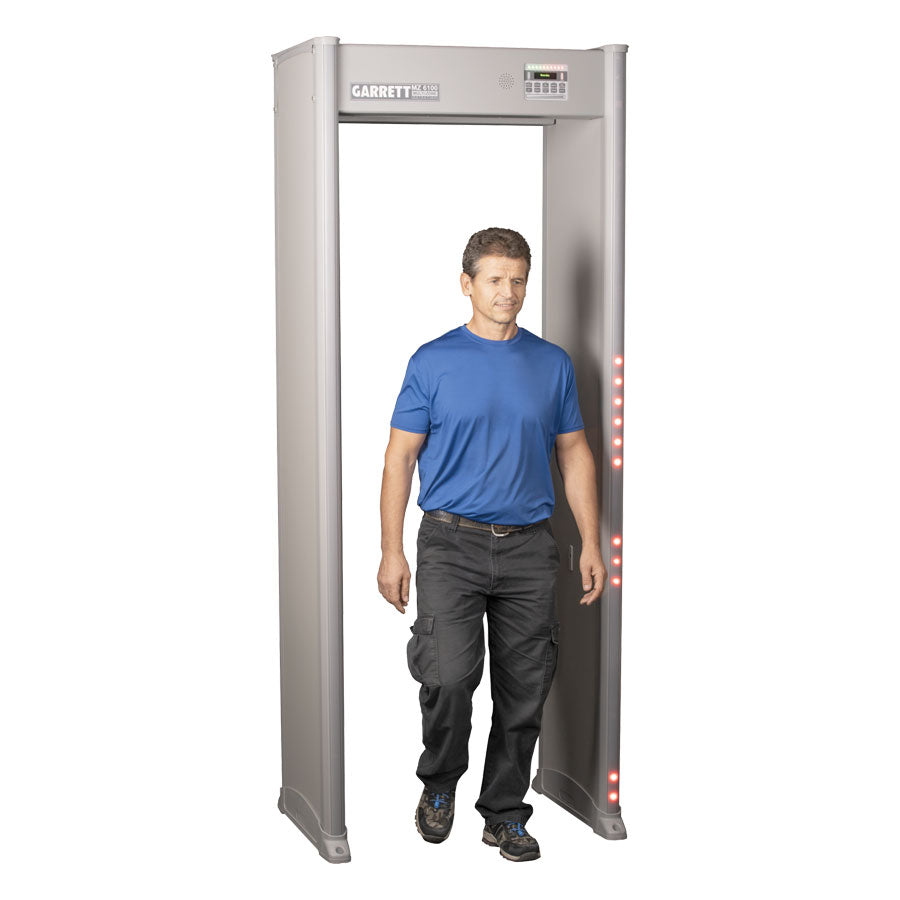

Garrett MZ6100 Walk-Through Metal Detector Grey

Competitively priced, Garrett’s MZ 6100 walkthrough metal detector provides enhanced performance and superior versatility. More than 15 special program selections have been engineered to meet the varying requirements of schools, stadiums, government buildings, airports, special events, prisons, night clubs, entertainment venues, loss prevention, and more.

The MZ 6100’s bright LED indicators are highly visible in the brightest sunlight. The unit’s 20 vertical zones provide precise pinpointing for one or more objects simultaneously, and advanced circuitry allows multiple detectors to operate as close as 2 inches from each other.

Operator adjustments are simple, thanks to an intuitive menu design and slider bar settings access. The MZ 6100 also includes an Auto Setup feature that chooses the optimal operating frequency based on the electromagnetic environment.

Optimum Performance
More than 15 application programs engineered to address the needs of schools, airports, special events, prisons, courthouses, facilities, mass transit, loss prevention, and other applications.

20-Zone Pinpointing
The MZ 6100’s twenty vertical zones provide precise pinpointing for one or more objects simultaneously.

Directional Counter
Four settings for counting patrons: forward only, reverse only, subtract in reverse, and bidirectional.

Optional Wired or Wireless Communication
Manage walkthroughs individually or as groups and perform statistical analysis via network with CMA interface module.

Advanced Synchronization
Internal circuitry allows multiple detectors to operate as close as 2 inches from each other.

Two Optional Battery
Backup Choices 1-hour or 10-hour operation lithium batteries available (sold seperately)

Intuitive Menu Design
32-character menu prompts are easy for users to understand (i.e., no codes, acronyms to learn).

Menu Slider Bar
Use to quickly adjust the value of a setting.

Enhanced Access Control
Tamper-free detector controls via a 5-digit alpha/numeric system that has 60 million code combos. Additional security measures include a programmable keypad inhibit switch secured in the cabinet.

Bright LED Indicators
Eye-level green “proceed” symbol, red “wait” symbol, and zone indicators are highly visible in the brightest sunlight.

Auto-Setup Function
The MZ 6100 scans electromagnetic environment and selects optimal frequency for noise cancellation.

Superior versatility
Field programmable to allow system up-grades. Selectable preferred language for user programming functions. Environmentally protected against wind, dust, rain

Selectable Language
Select preferred language for user programming functions.

Limited 24-month warranty: parts and labor.

Tamper-proof
Circuitry and cabling are secured behind a lockable panel. All settings are secured with two levels of access codes and a keypad restrict switch.

Easy assembly
The MZ 6100's modular design allows quick and simple assembly of its four (4) sub assemblies using only eight (8) screws and three (3) internal cable connections.

Digital Signal Processor (DSP)based technology
DSP provides greater sensitivity, noise immunity, discrimination, detection uniformity, and overall product reliability

Specifications:

Operating Temperatures
4°F (-20°C) to + 140°F (60°C); Humidity: To 95 noncondensing.

Power
Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 40 watts; no rewiring, switching or adjustments required.

Regulatory Information
Meets Electrical Safety and Compatibility requirements for CE, FCC, CSA, IEC, ICNIRP, IEEE. Addtional certifications pending

Weatherproofing / Foreign Object Protection Standards
Meets IP 55, IEC 529 Standard for moisture, foreign matter protection.

Zone indications
20 zones

Overhead Control Unit
20 zones All electronics - LED, alarm light, bar graph, control touch pads - integrated to eliminate exposed wires, tampering.

Programs
Over 15 application programs inlcuded

Sensitivity
Up to 200 distinct sensitivity levels

Multi-Unit and Multi-Brand Compatability
2,300 selectable operating frequencies and multiple channels allow the MZ 6100 to operate in close proximity to other MZ 6510is as well as with non-Garrett walk-throughs.

Auto-Scan Function
The MZ 6100 scans electromagnetic environment and selects optimal frequency for noise cancellation.

Directional Counter
Four settings for counting patrons: forward only, reverse only, subtract in reverse and bi-directional).

Random Alarm Feature
Provides ability to randomly alarm on a selected percentage of non-alarming persons; adjustable from 0 to 100 percent.

Alarms
Audible tone and volume adjustable. Bright LED visual alarm.

Tamper-Proof Settings
Three levels of access control

Self Diagnostic Program
Complete and automatic

Tamper-Proof Settings Zone Sensitivity Boost
20 Independently adjustable boosts

Battery Packs (optional)
1.5 amp-hour and 14 amp-hour lithium battery modules provide typical 1 hour or 10 hour operation times - integrated to eliminate exposed wires, tampering.

Control Outputs (optional)
Module connector via RS 485 cable provides NO/NC relay contact using Relay Module

Remote Control (optional)
Module connector via RS 485 cable provides NO/NC relay contact using Relay Module Desktop Remote Control with Zone Indication and/or via network with IoT Control Module (iC Module)

Networking (optional)
Manage individual or groups of walkthroughs and perform statistical analysis of throughput using iC module

Construction
Attractive scratch and mar-resistant laminate. Detection Heads and Support: Heavy duty aluminum.

Dimensions

Passageway Interior Size

• Width 30" (0.76 m)
• Height 80" (2.03 m)
• Depth 23" (0.58 m)

Overall Exterior Size

• Width 35" (0.90 m)
• Height 87" (2.21 m)
• Depth 23" (0.58 m)

Weight

• Weight: 143 lbs. (64 kg)
• Shipping Weight: 151 lbs. (68.5 kg)

Shipping Size

• Width 35.5" (0.90 m)
• Height 91.5" (2.32 m)
• Depth 6.25" (.16 m)



GARRETT WALK-THROUGH DETECTOR SPECS COMPARISON	PD 6500i™ For maximum performance	MZ 6100™ Multi-zone power, budget-friendly
Detection Zones	33 zones (left, right and center); visual and remote alarms.	20 independent zones
Multi-Unit Synchronization	Synchronization with wired AC power lines or with manual frequency selection for wireless operation	Synchronization with wired AC power lines or with manual frequency selection for wireless operation. Auto frequency scan for wireless operation
Visual Displays	LED zone indicator lights on both panels. Pace lights on entry side only, with intuitive images.	Bright LED indicator lights on entry and exit sides  of Panel A (Panel B zone light kit optional). Status lights are individually configurable as pace lights, ready/alarm lights or disabled.
Access Control	Eight-button keypad with numerical codes. Keypad lock to control access and to enable/disable the keypad.	Ten-button operation with full alpha-numeric 5-digit access code. Enable and disable keypad function with a rocker switch locked inside the  detector head.
Passageway Interior Size	Width 30" (0.76 m) Height 80" (2.03 m) Depth 23" (0.58 m) (28” and 32” versions are also available)	Width 30" (0.76 m) Height 80" (2.03 m) Depth 23" (0.58 m) (32” versions are also available)
Overall Exterior Size	Width 35" (0.90 m) Height 87" (2.21 m) Depth 23" (0.58 m)	Width 35" (0.90 m) Height 87" (2.21 m) Depth 23" (0.58 m)
Shipping Size	Width 35.5" (0.90 m) Height 91.5" (2.32 m) Depth 6.25" (.16 m)	Width 35.5" (.90 m) Height 91.5" (2.32 m) Depth 6.25" (.16 m)
Shipping Weight	165 lbs. (74 kg)	151 lbs. (68.5 kg)
Operating Temperatures	Minus 4º F (-20º C) to +149º F (65º C); Humidity to 95% non-condensing.	Minus 4º F (-20º C) to +140º F (60º C); Humidity to 95% non-condensing.
Power	Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 45 watts; no rewiring, switching or adjustments needed.	Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 40 watts; no rewiring, switching or adjustments needed.
Regulatory Information	Meets international airport standards such as TSA, ECAC, STAC, AENA, CJIAC, DFT. Meets additional standards and requirements such as USMS, NIJ-0601.02, NILECJ. Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP, IEEE.	Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP and IEEE. Additional certifications pending.
Weatherproofing	Meets IP 55, IP 65, IEC 529 Standard for moisture, foreign matter protection	Meets IP 55, IEC 529 Standard for moisture, foreign matter protection
Construction	Attractive scratch and mar-resistant laminate. Detection Heads and Support: heavy duty aluminum.	Attractive scratch and mar-resistant laminate. Detection Heads and Support: heavy duty aluminum.
Control Outputs	Solid state switches (low voltage AC or DC) for operating external alarms and control devices.	Optional Relay module connected via RS 485 cable provides NO/NC relay contact
(optional) Remote Control	Desktop Remote Control with Zone Indication; personal computer with wired or wireless iC Module; or IR remote	Desktop Remote Control with Zone Indication; personal computer with wired or wireless iC Module; or IR remote
(optional) Networking	Manage individual or groups of walkthroughs and perform statistical analysis of throughput with wired or wireless iC Module and client software.	Manage individual or groups of walkthroughs and perform statistical analysis of throughput with wired or wireless iC Module and client software.
Warranty	24 months, limited parts and labor	24 months, limited parts and labor
