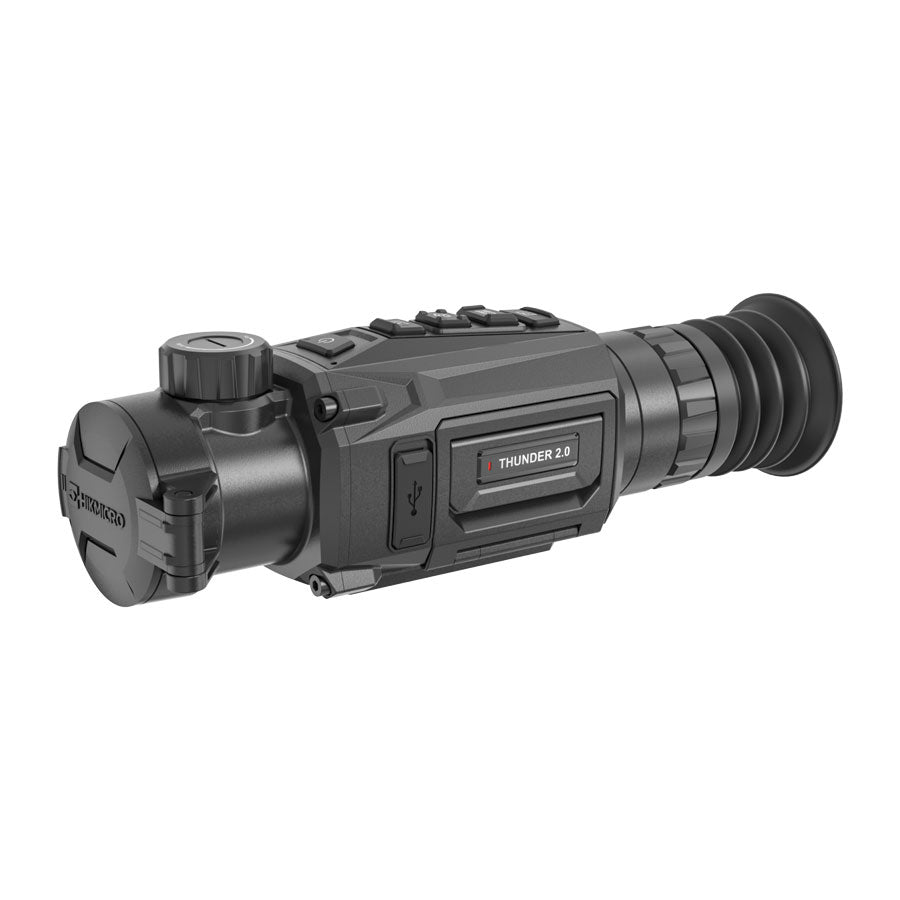

HiKMicro Thunder TH35P 2.0 Thermal Scope
HiKMicro Thunder TH35P 2.0 Thermal Scope
The HIKMICRO THUNDER TH35P 2.0 Thermal Image Scope has a 384 × 288 thermal detector and a 1024 × 768 OLED display. High thermal sensitivity ensures perfect detail recognition even in the hardest weather conditions when the object and background are with minimal temperature difference. With an extended operation time, the scope is mainly applied to scenarios such as hiking, hunting, searching and rescuing.
Features
SUPERIOR 12 MICRON SENSOR
The brand new HIKMICRO Thunder TH35 2.0 Smart Thermal Scope comes with the popular and more advanced 12-micron, SUB 20mK NETD, 384 x 288 sensor. With this improvement, the TH35 2.0 will give the user a clearer image without compromising on weight or size.
PREMIUM QUALITY
The TH35 2.0 boasts exceptional image quality allowing you to be confident in your identification.
PACKED WITH FEATURES
The HIKMICRO Thunder TH35 2.0 comes standard with WIFI to allow streaming to a phone or tablet, one shot zero, on board photo & video recording and much more.
Specification
Thermal Module
Image Sensor: Uncooled Focal Plane Arrays
Max. Resolution: 384x288
Frame Rate: 50Hz
Pixel Interval: 12μm
NETD: Less than 20mK (25 °C, F#=1.0)
Lens (focal length): 35mm
Detection Range: 1800m
Field of View(H × V), Degrees / m @100m: 7.53° ×5.65°/13.17m × 9.87m
Min. Focusing Distance: 2m
Aperture: F1.0
Magnification: 3.03 ×
Focus Knob: Yes
Image Display
Display: 1024x768, 0.39 inch, OLED
Brightness Adjustment: Yes
Palettes: Black hot, white hot, red hot, fusion
FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
Exit Pupil: 6mm
Eye Relief: 45mm
Diopter (Range): -5D to 5D
Tone Adjustment: Cold, Warm
General
Protection level: IP67
Weight: 515g without Battery
Dimension: 221.14mm x 67.4mm x 68.04mm
Working Temperature: -30 °C to +55 °C (-22 °F to 131°F)
System
Record Video: On-board video recording
Capture Snapshot: Yes
Hotspot: Yes
Standby Mode: Yes
Storage: Built-in EMMC (16GB)
PIP: Yes
DPC: Yes
Digital Zoom: 1X, 2X, 4X, 8X
Hot Track: Yes
Distance Measurement: Yes
Audio Recording: Yes
Recoil-activation Recording: Yes
Max. Recoil: 1000g/0.4ms
Power Supply
Battery Type: Replaceable and Rechargeable Li-ion Battery
Battery Operating Time: ≥6.5h (25 °C, with hotspot off)
Type-C Power Supply: 5V DC, 2 A Supports External Power Supply
