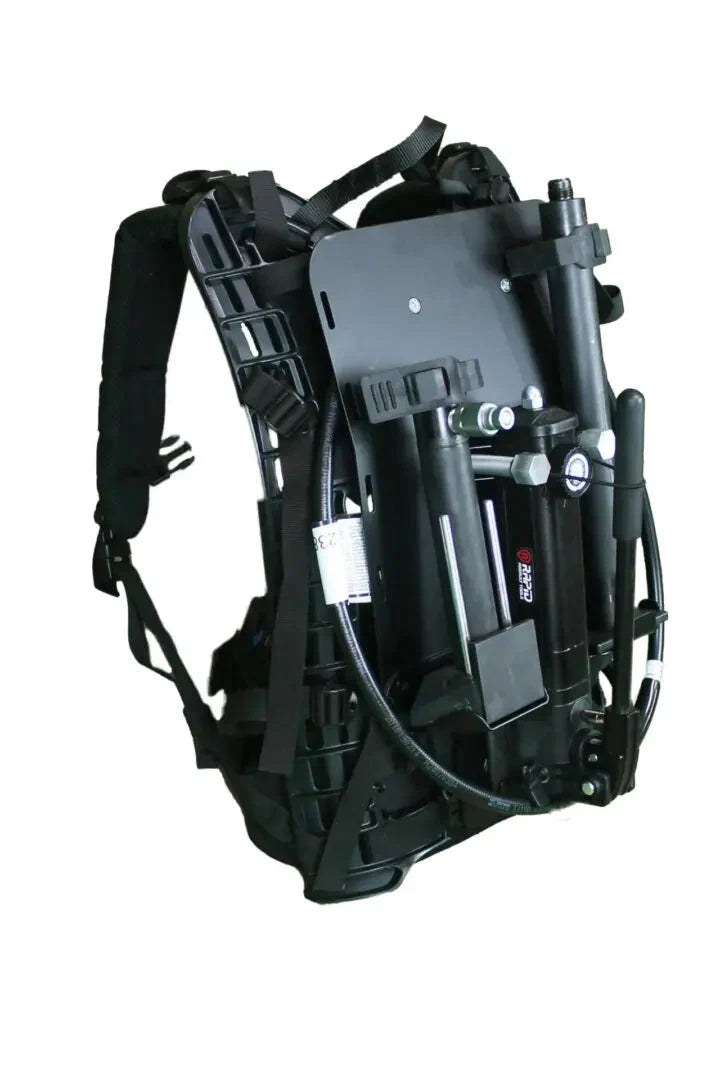

Rapid Assault Tools Hydraulic RatPak Gen 3 HRP-3 includes Backpack, Bolt Cutter, Jamb Spreader and Door Pusher

Highly portable and effective hydraulic breaching toolkit in a custom made backpack. Quick disconnect fittings allow operator to switch tools depending on mission. Door pusher, jamb spreader, bolt cutter, and hydraulic wedge can all be powered easily and quietly from pump. All new Rigid frame backpack!

Tools are conveniently carried in a custom, heavy duty back pack. Pack is constructed with:

• Adjustable padded shoulder straps and adjustable padded hip belt
• Semi-rigid backing material for strength and comfort
• Loop handle on top to lift pack
• Backpack material: High Strength Polymer and Aluminum.
• Available in Black

Pack includes:

Door Pusher: HDP4

• 4 inch (102mm) stroke
• 10,000 lbs. (44kN) of force
• Includes quick coupler
• Working Pressure: 10,000psi (700 bar)
• Weight: 7.5 lbs. (3.4Kg)s

Jamb Spreader Bar: JS41

• Screws onto end of HDP4 to create jamb spreader
• For use on jambs between 26 inches and 41 inches (66 cm and 104cm)
• 10,000 lbs. (44kN) of force
• Working Pressure: 10,000psi (700 bar)
• Weight: 5.7 lbs. (2.6Kg)

Hydraulic Bolt Cutter: HBC 30 (Included in HRP3)

• Suitable for cutting metal
• Drop-Forged steel alloy cutting jaws. Jaw opening at tip: 0.75 inch (18mm)
• Cutting capacity: .27in (7mm) with High Hardness HRC40, and .51in (13mm) with Low
• Hardness HRC 20
• 40,000 lbs. of cutting force
• Dimensions: 8.3 inch x 7.2 inch x 2.4 inch (213 mm x 184 mm x 59mm)
• Single acting steel cylinder with quick coupler, Working Pressure: 10,000psi
• Weight: 6.8 lbs. (3.1 Kg)

Download Spec Sheet here
