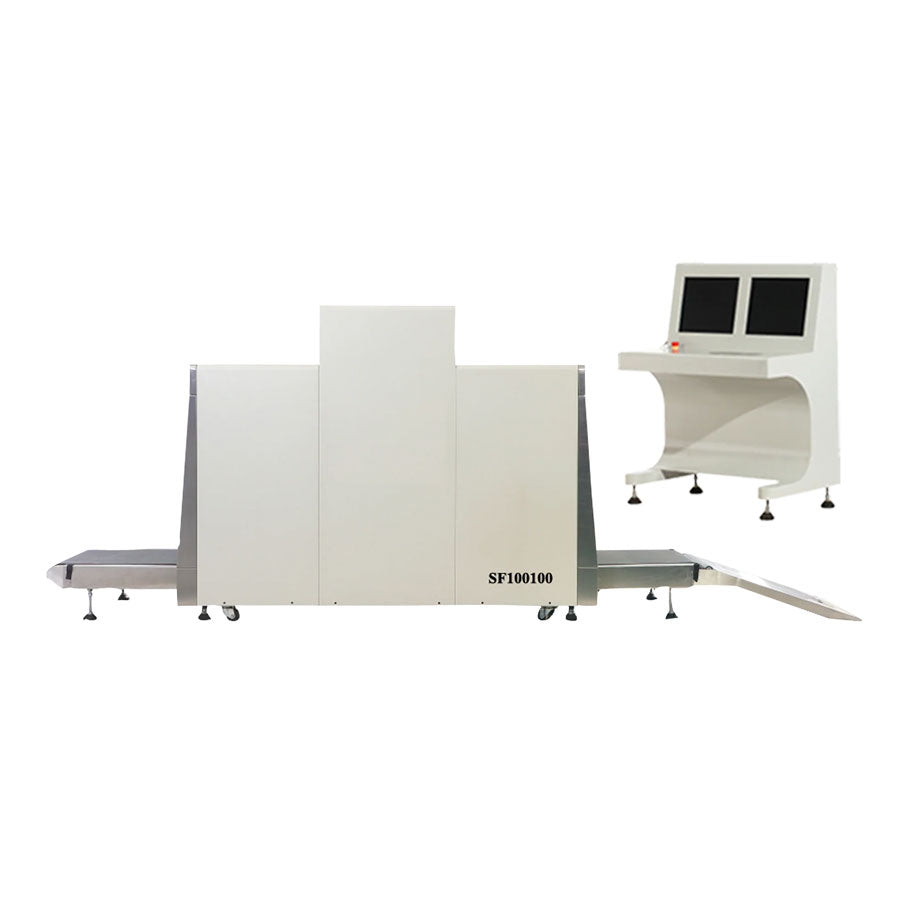

Ventura XR 1001 Large Baggage & Small Cargo Scanner

Ventura XR 1001 Large Baggage & Small Cargo Scanner

Features and Specifications

• 2* 19” High-Resolution LCD Monitor;
• Display Resolution: 1280*1024; Color and B/W scanning image display
• Single energy
• L-shaped array detector
• L shape x-ray detector Safety Interlocks
• Emergency stop buttons on the console and entry & exit of the tunnel (one-key shut down)
• Brightening/dimming: Increase/Decrease the brightness of the image
• Image Storage—100,000 pictures in real time (can be customized)
•  Orientation: Downward;
•  Tube Current: 0.6mA;
•  Anode voltage: 80KV;
•  X-ray divergence angle: 60 °;
•  Cooling: Sealed oil bath with forced air;
•  Generator cooling/working periods: Sealed oil bath with forced air/100％.
• Tunnel Size: 1000(W) ×1000(H) mm

• Conveyor Speed: 0.22m / s

• Conveyor Max Load: 250kg

• Single inspection dosage: < 1.6μGy

• Leakage radiation: < 0.2µGy/ h

• Wire Resolution: 38awg

• Steel Penetration: 10mm

• Film Safety: For ISO 1600
